Cordless mini oil and water transfer pumps
Model 32 Cordless Mini Oil & Water Transfer Pump
A compact cordless pump for transferring water, common oils and other compatible liquids. Its slim 32 mm body fits most common drinking-water containers, chemical drums and similar vessels, helping reduce manual lifting and pouring during routine dispensing and refilling.
- Flow rate
- Up to 20 L/min
- Power
- 80W
- Lift
- 2–3 m
Product media
Details, configuration and applications
Images show the named model and selected configuration. Final kit contents are confirmed in the quotation.
Product video
Model 32 mini transfer pump demonstration
Playback starts only when selected. The demonstration is provided for product identification and application reference.
Key features

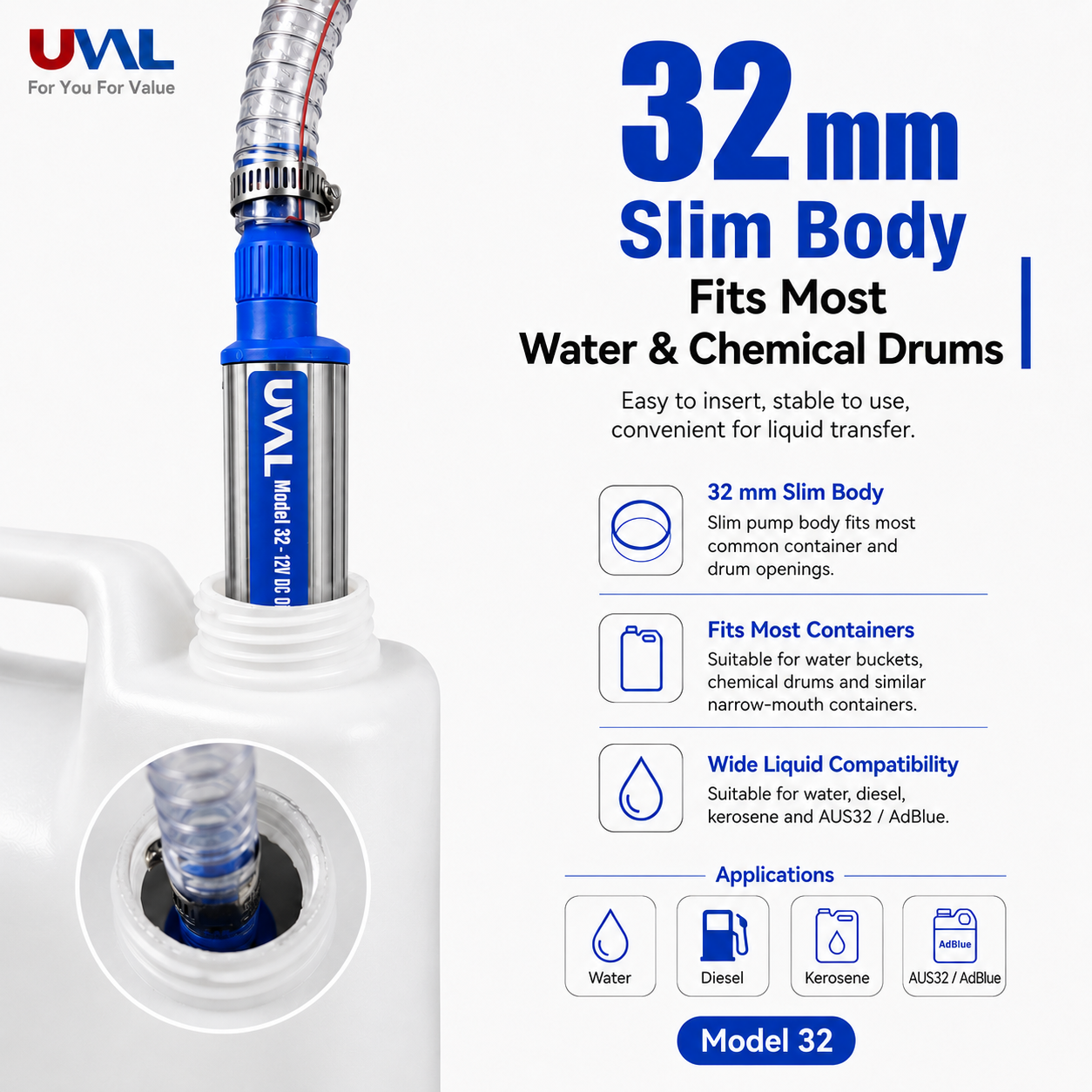

- Slim 32 mm body fits most common drinking-water containers, chemical drums, and similar vessel openings
- Up to 20 L/min reference flow helps reduce manual lifting and pouring
- 80W motor with cordless battery power supports use away from fixed power outlets
- Compact, lightweight construction for routine dispensing, refilling, and mobile transfer
- 16 mm and 19 mm outlet options for compatible hose connections
Typical applications
- Bottled-water transfer
- Compatible-liquid transfer from chemical drums
- Diesel and kerosene dispensing
- Urea-solution refilling
- Mobile light-liquid transfer around homes, workshops, warehouses, agricultural machinery, and outdoor work areas

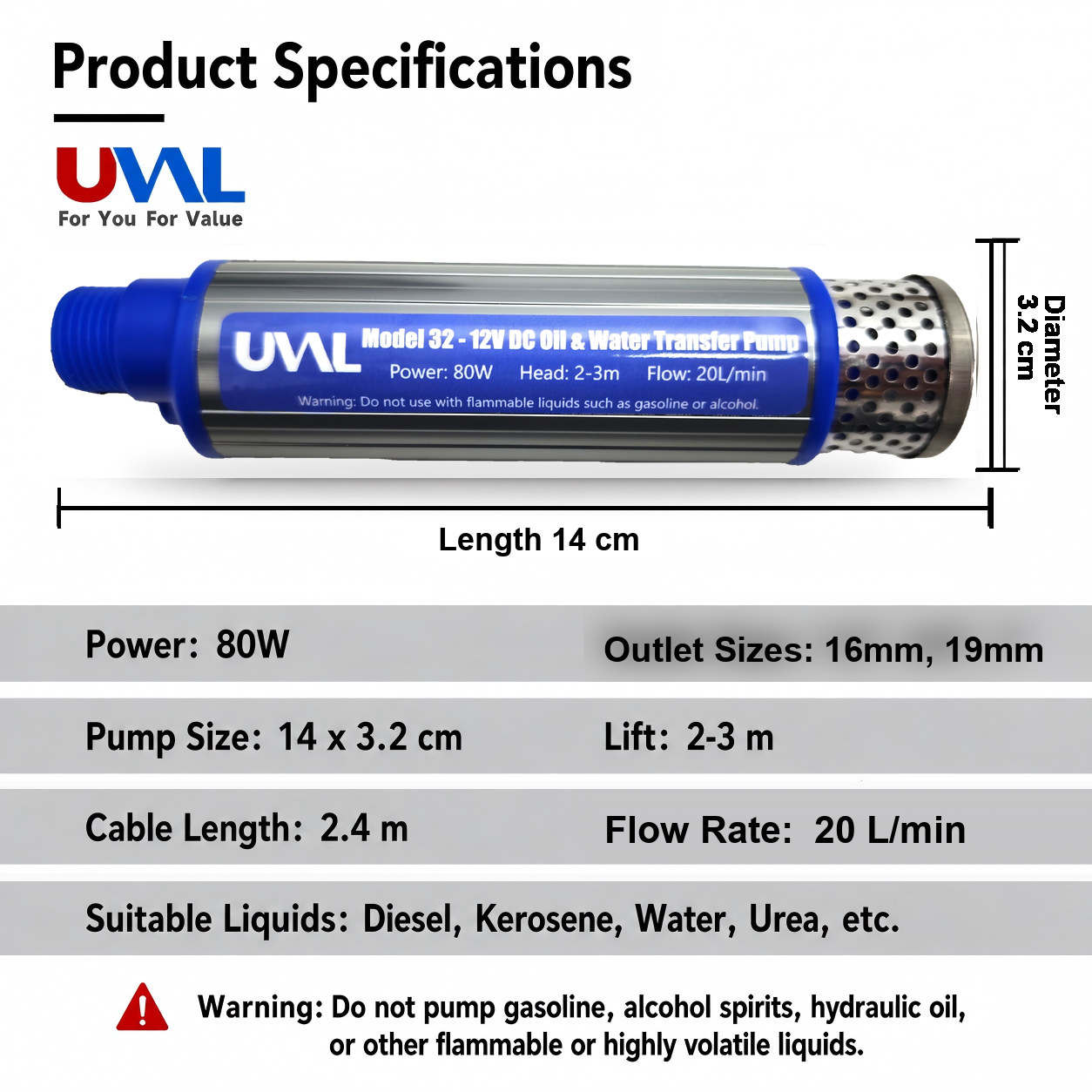

Technical specifications
- Power supply
- Cordless lithium-battery power with a Makita-style 12V battery adapter
- Voltage
- 12V DC
- Power
- 80W
- Rated flow
- Up to 20 L/min
- Lift
- 2–3 m
- Pump size
- 14 × 3.2 cm
- Body diameter
- 32 mm
- Outlet / adapter
- 16 mm and 19 mm
- Cable length
- 2.4 m
- Suitable liquids
- Water, diesel, kerosene, urea solution, and confirmed-compatible low-viscosity, non-flammable liquids
- Packaging
- 21 × 11 × 6 cm per unit; 46 × 41 × 30 cm per carton of 40 units
- Weight
- 0.34 kg net and 0.35 kg gross per unit; 14 kg gross per carton
Package contents

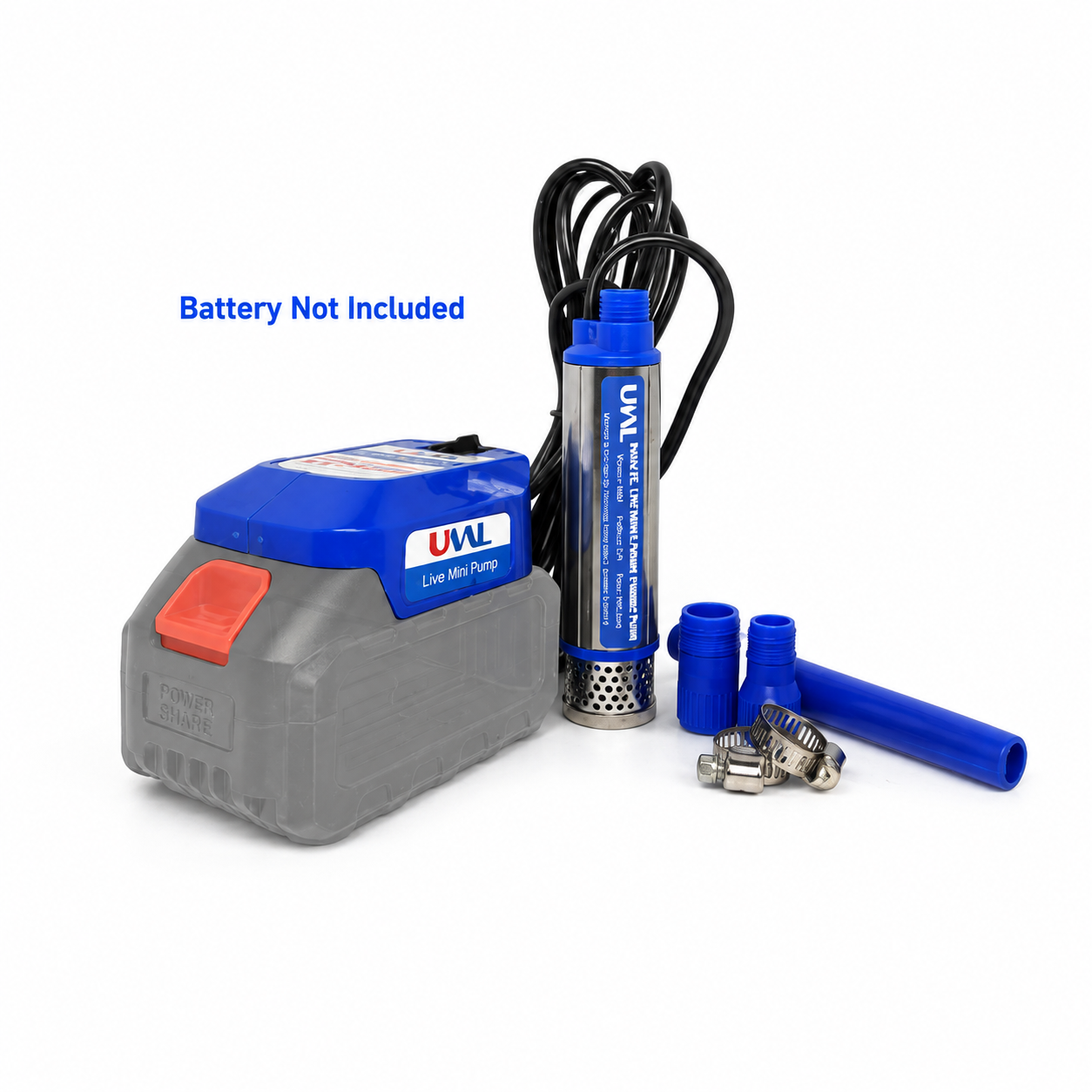

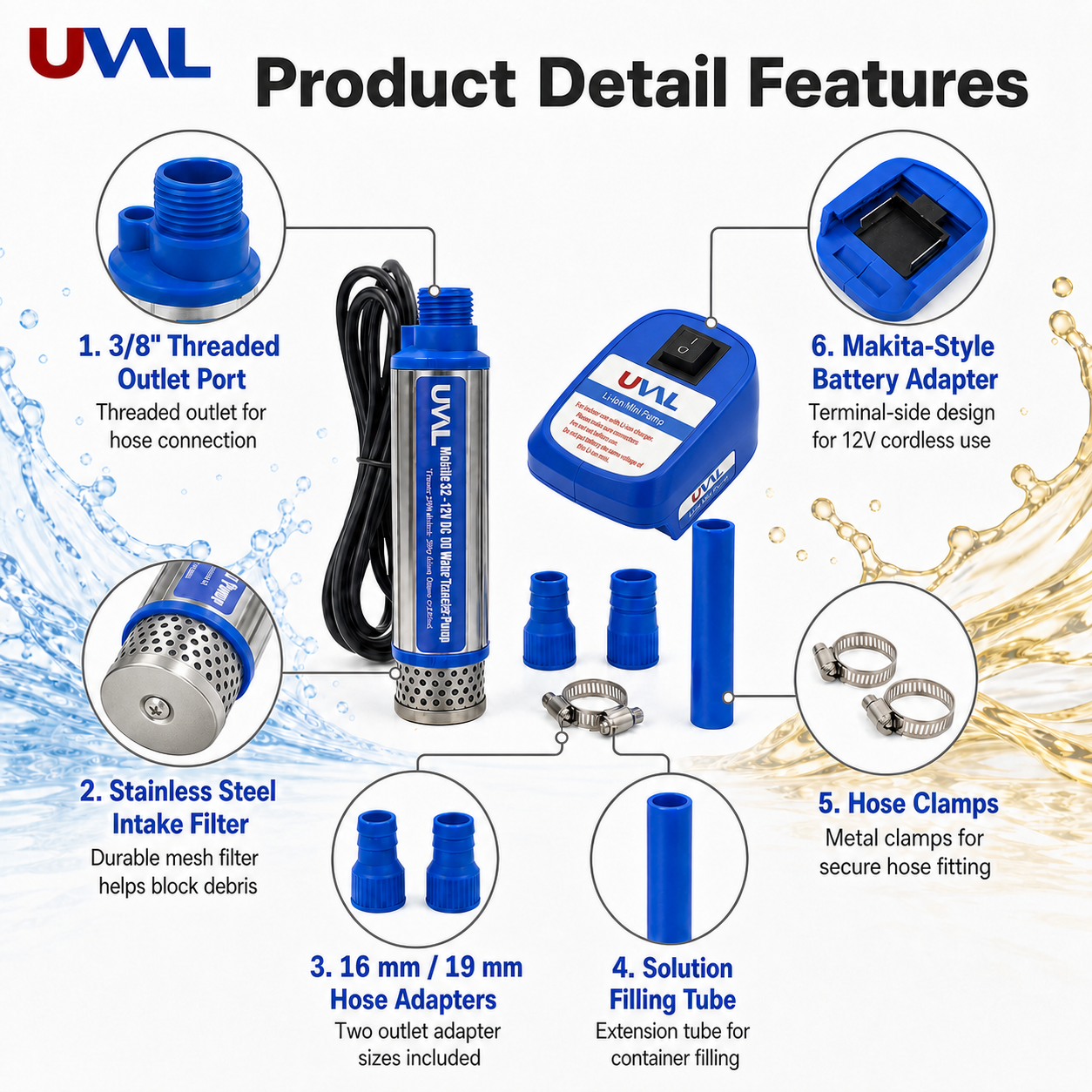

Pump body, battery adapter, hose or connector fittings, and related accessories. The battery is not included; final contents depend on the confirmed kit and quotation.

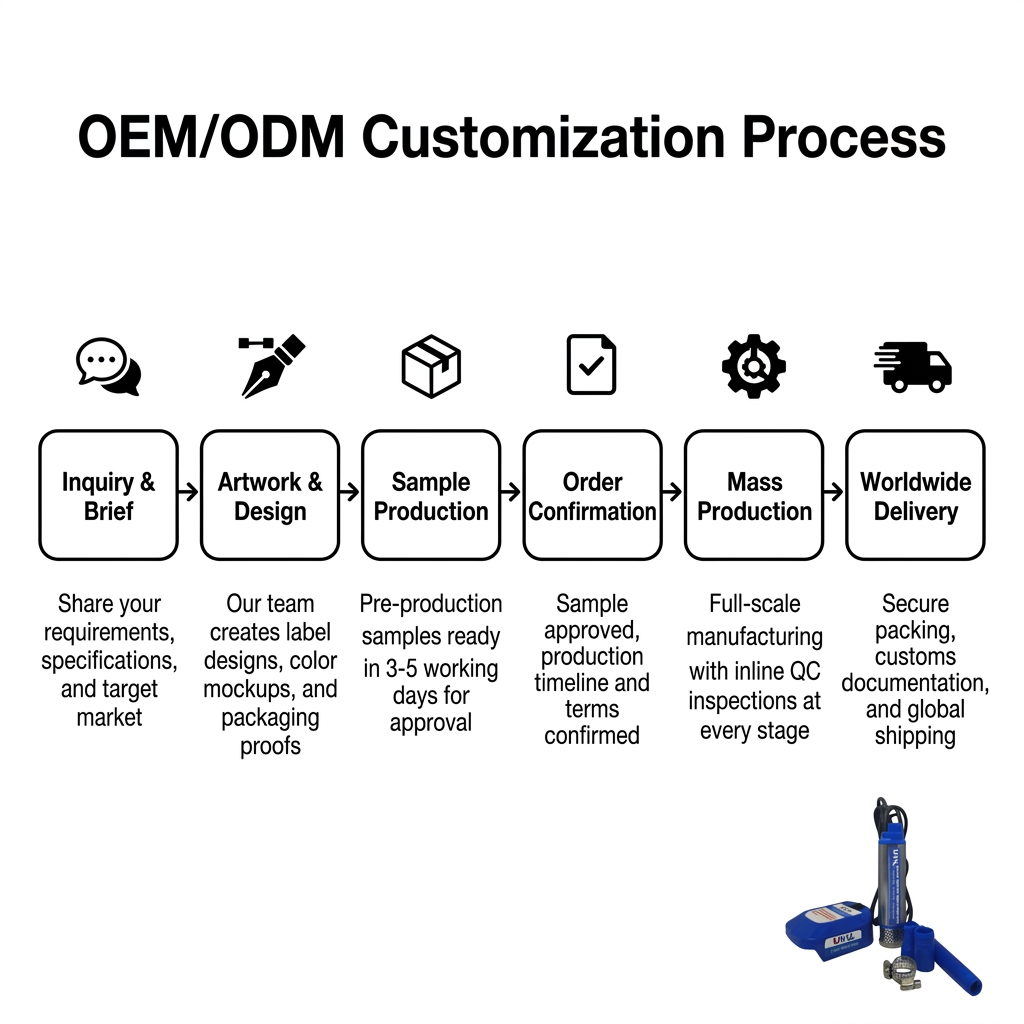

OEM options
- Label
- Plastic-part color
- Pump-body style
- Cable length
Recorded operating data
Noise test: Pump fully submerged in a 20 L bucket with a 30 cm diameter and measured at 1 m: approximately 38 dB total sound pressure level with 30 dB ambient background, an 8 dB measured difference, and approximately 37.3 dB estimated pump sound pressure level after logarithmic background correction.
Runtime: Approximately 1 h 20 min with a 12V, 4,000 mAh lithium battery
Continuous use: No more than 2 h recommended
These values describe the stated test configuration and are not presented as third-party laboratory certification.
