Low-voltage submersible transfer pumps
Model 51 Gold DC Submersible Transfer Pump with Battery Clips
An economical low-voltage DC transfer pump for water pumping, oil transfer, equipment refueling and narrow-space drainage.
- Flow rate
- 30 L/min
- Power
- 85W
- Lift
- 3–5 m
Product media
Details, configuration and applications
Images show the named model and selected configuration. Final kit contents are confirmed in the quotation.
Product video
Model 51 Gold product detail video
Playback starts only when selected. The demonstration is provided for product identification and application reference.

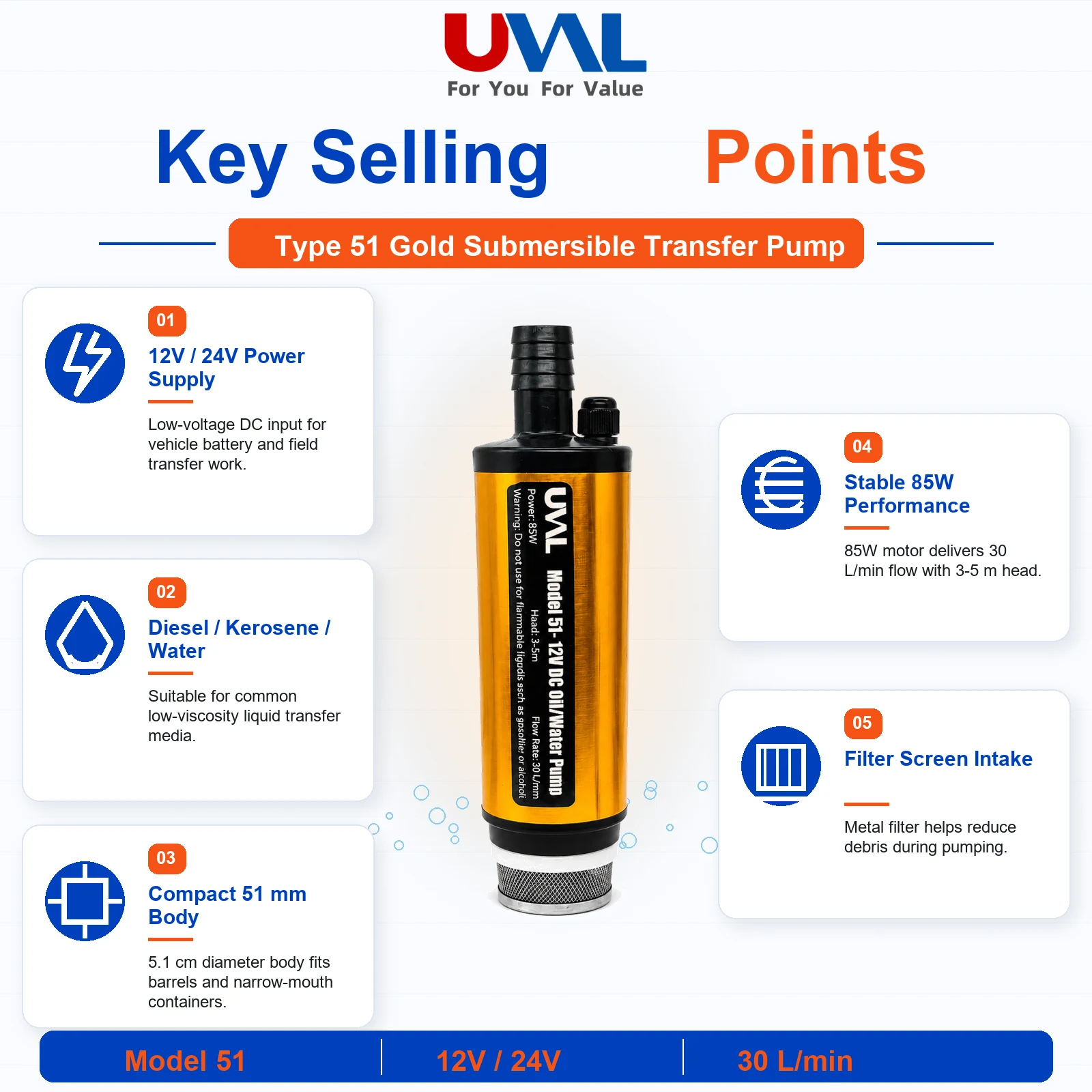

Key features
- 85W motor
- 30 L/min rated flow
- Aluminum-alloy housing
- Built-in filter screen

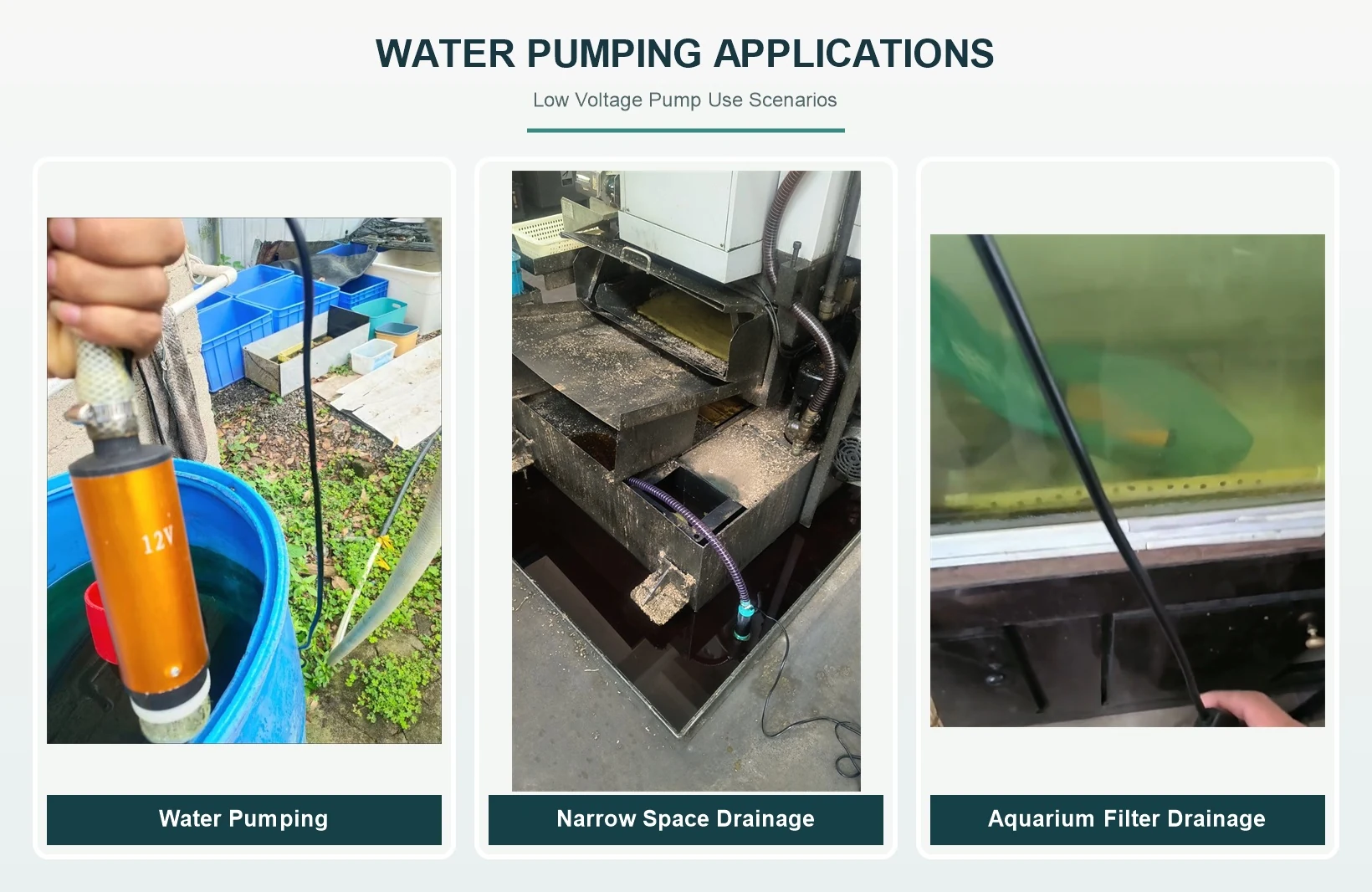

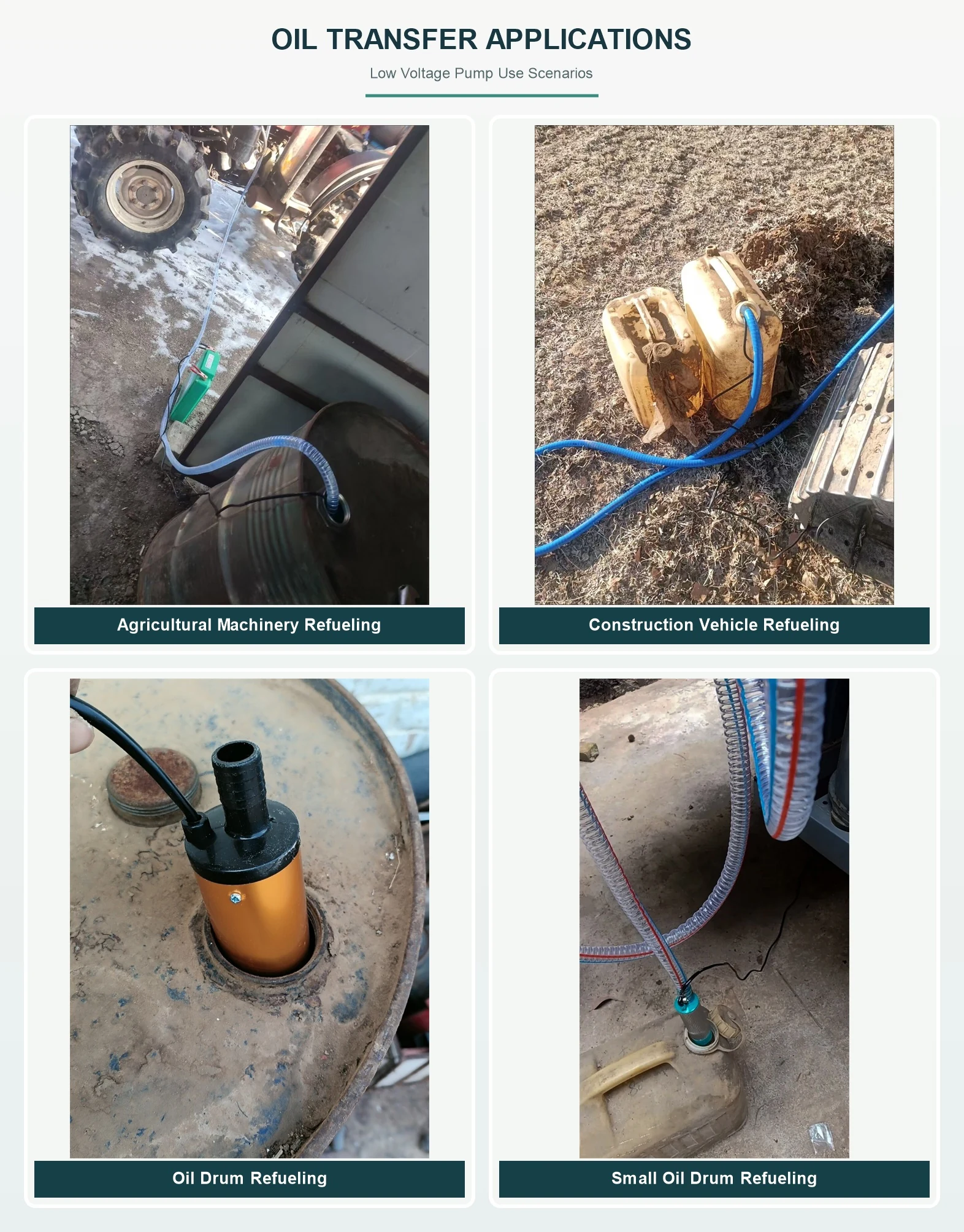

Typical applications
- Water drainage
- Diesel and kerosene transfer
- Machinery refueling
- Tank and narrow-space drainage

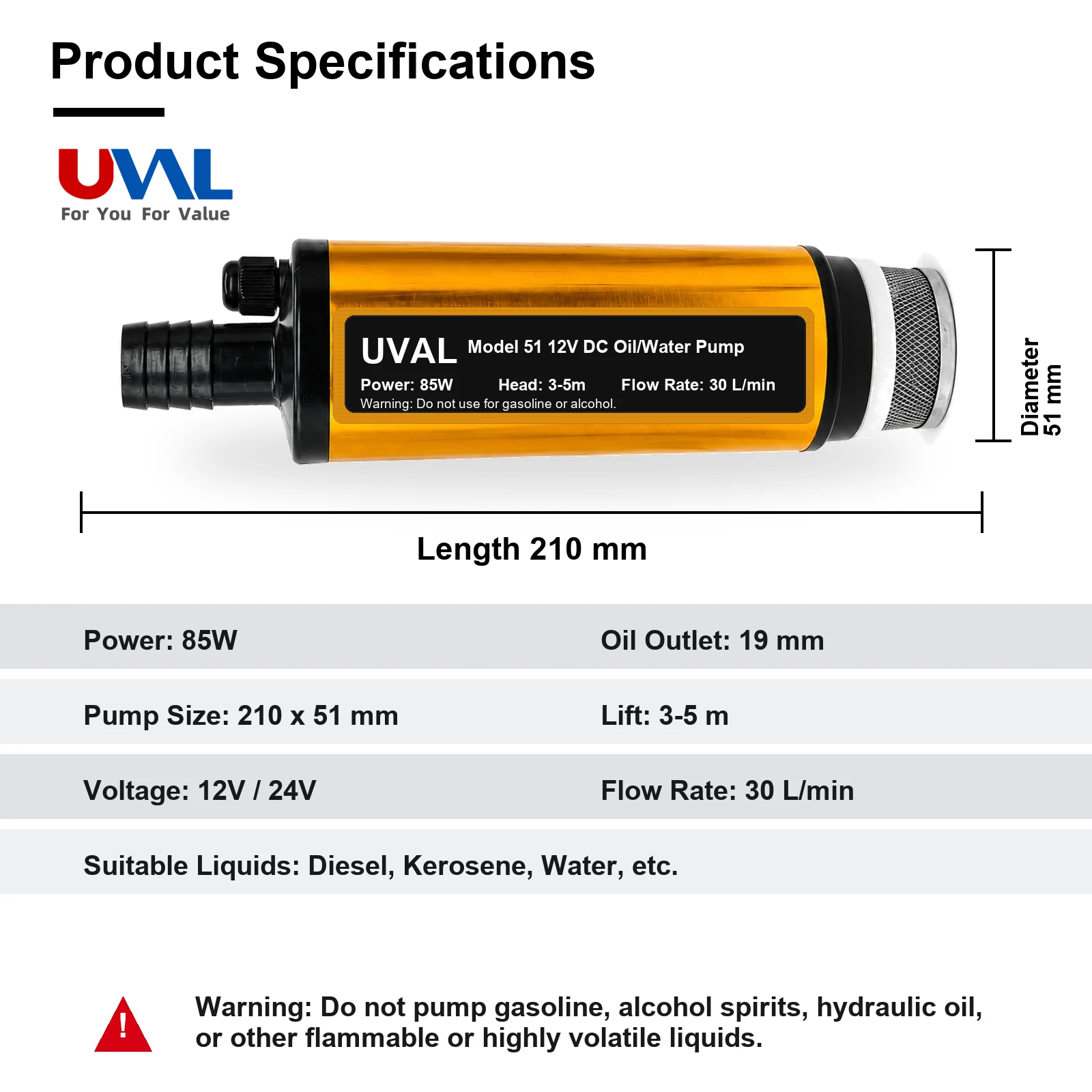

Technical specifications
- Power supply
- 12V / 24V battery clips
- Voltage
- 12V / 24V
- Power
- 85W
- Rated flow
- 30 L/min
- Lift
- 3–5 m
- Pump size
- 210 × 51 mm
- Body diameter
- 51 mm
- Outlet / adapter
- 19 mm
- Cable length
- 2.4 m
- Suitable liquids
- Diesel, kerosene and water
- Packaging
- 21 × 11 × 6 cm per unit; 40 units per carton
- Weight
- 0.45 kg net; approximately 0.46 kg gross per unit
Package contents
Gold pump body, battery-clip cable and filter screen; final contents depend on the confirmed kit.
OEM options
- Label
Recorded operating data
Noise test: Measured total sound pressure level: approximately 40 dB at 1 m, with 30 dB ambient background. Estimated pump-only contribution after logarithmic background correction: approximately 39.5 dB.
Runtime: Approximately 1 h under the recorded test configuration
Continuous use: 2 h recommended
These values describe the stated test configuration and are not presented as third-party laboratory certification.
