Brushless high-flow transfer pumps
Model 53 Brushless High-Flow DC Pump
A 268W brushless high-flow pump for demanding transfer, irrigation, spray and mobile liquid-supply applications.
- Flow rate
- 70 L/min
- Power
- 268W
- Lift
- 12 m
Product media
Details, configuration and applications
Images show the named model and selected configuration. Final kit contents are confirmed in the quotation.
Product video
Model 53 product demonstration
Playback starts only when selected. The demonstration is provided for product identification and application reference.

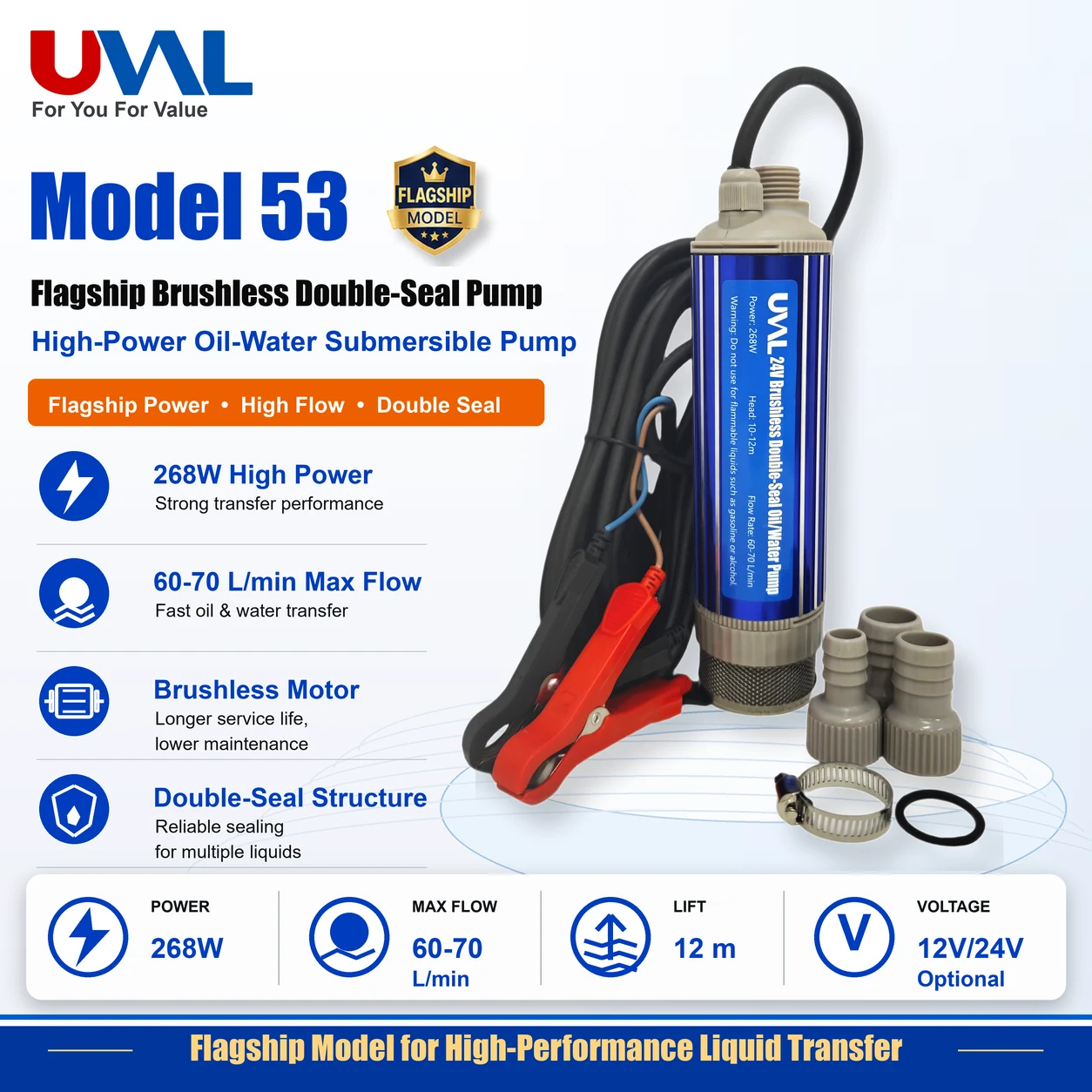

Key features

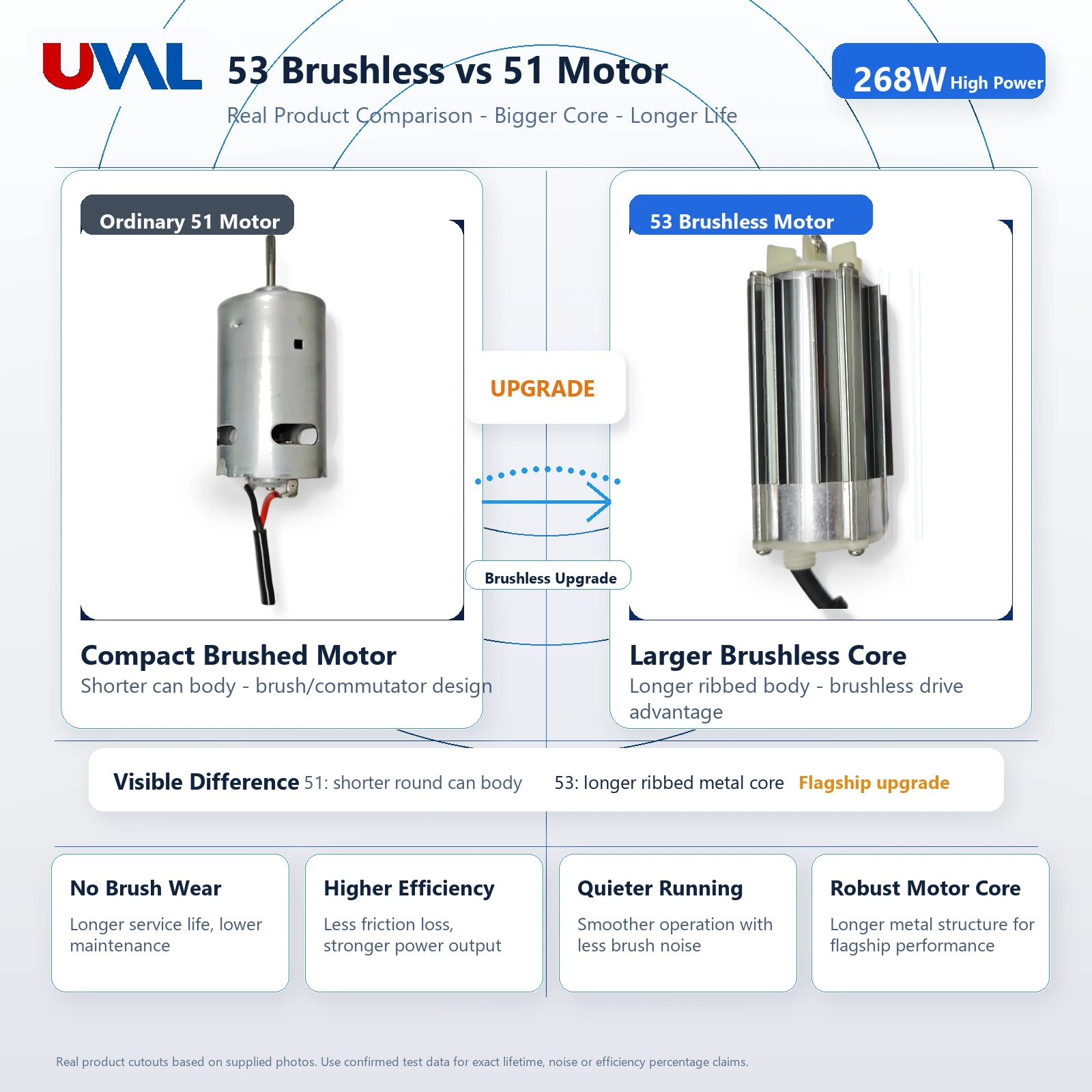

- 268W brushless motor
- 70 L/min rated flow
- 12 m lift

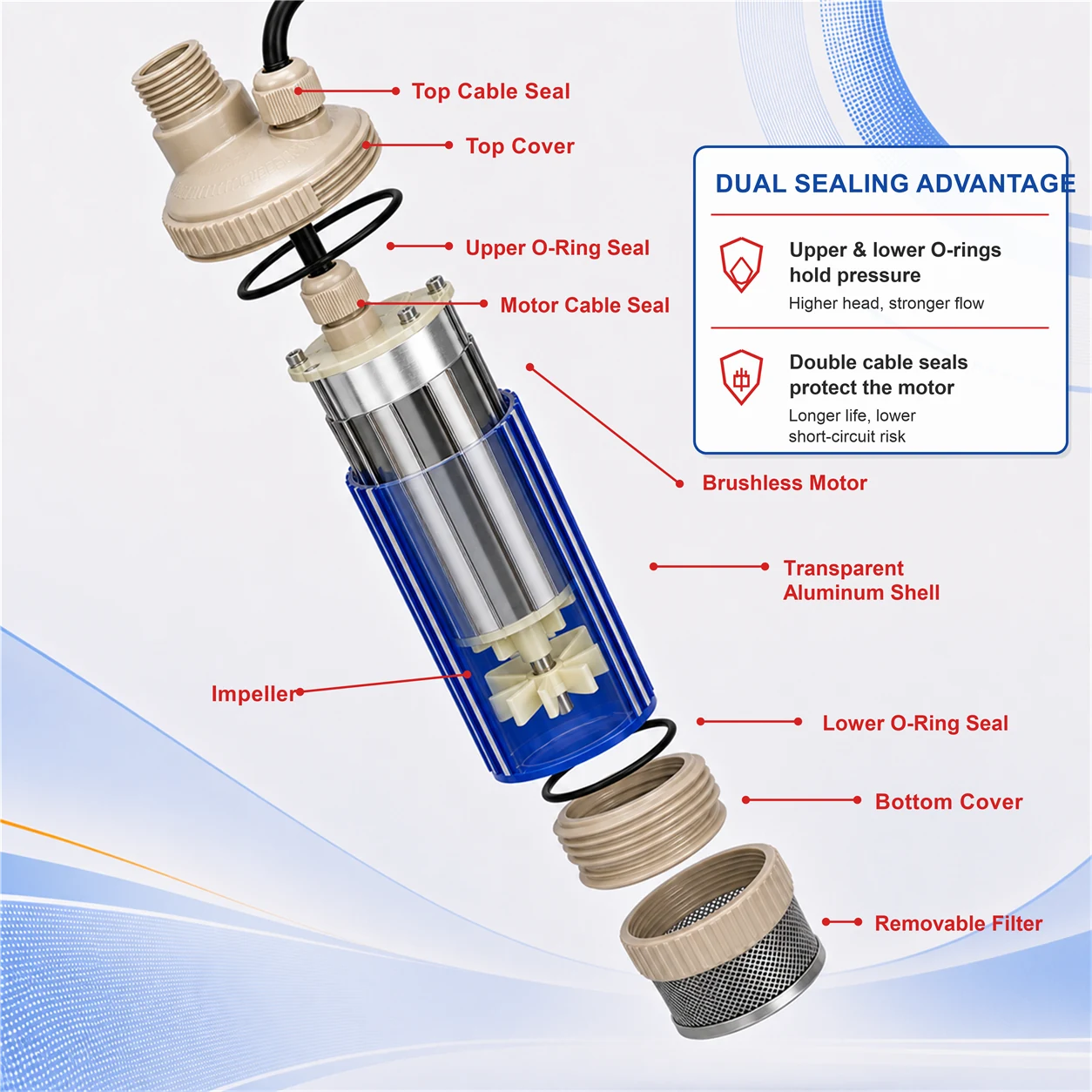

- Dual-seal structure
Typical applications
- High-flow water pumping
- Fuel transfer
- Farm irrigation
- Spray and drip-irrigation kits

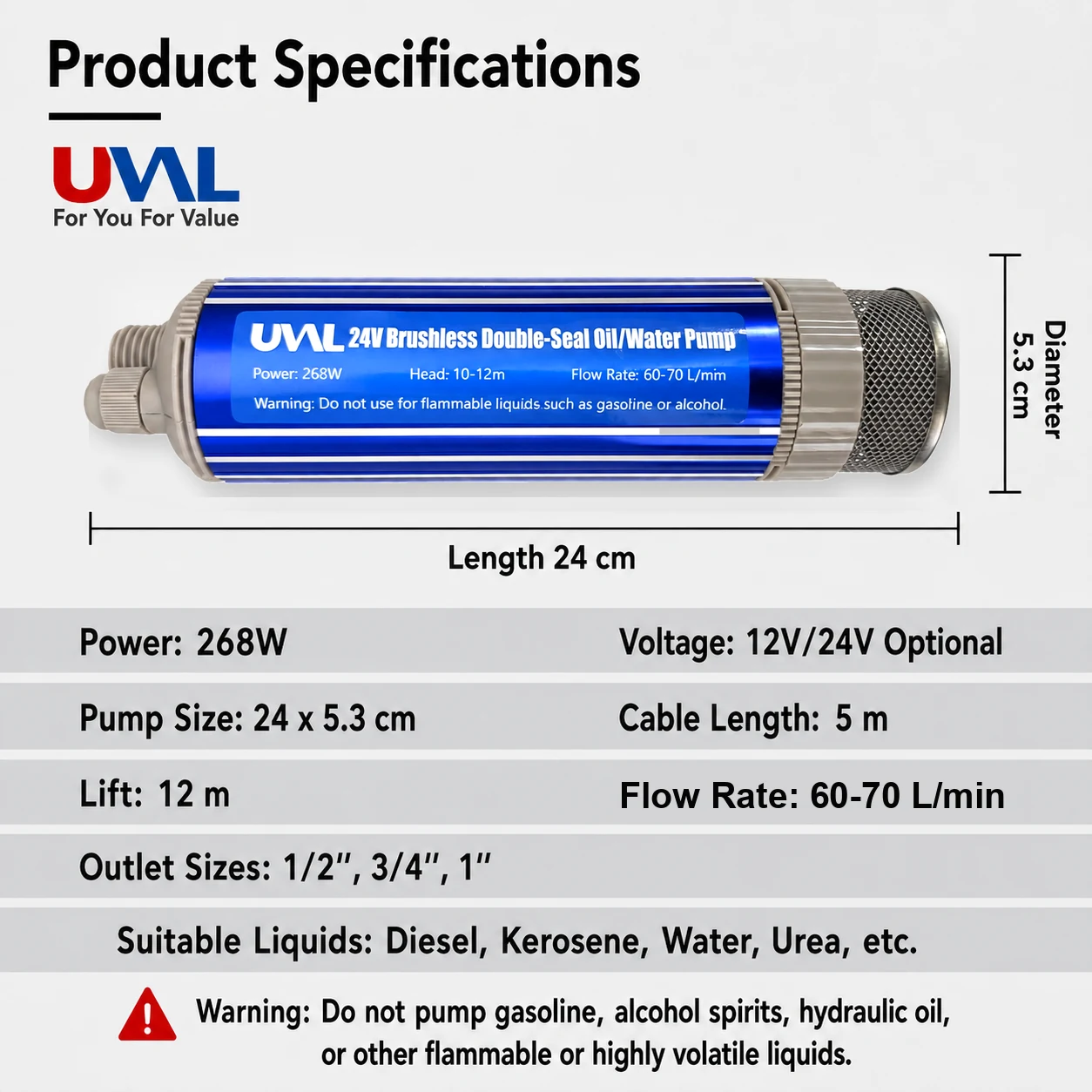

Technical specifications
- Power supply
- 12V / 24V battery clips
- Voltage
- 12V / 24V optional
- Power
- 268W
- Rated flow
- 70 L/min
- Lift
- 12 m

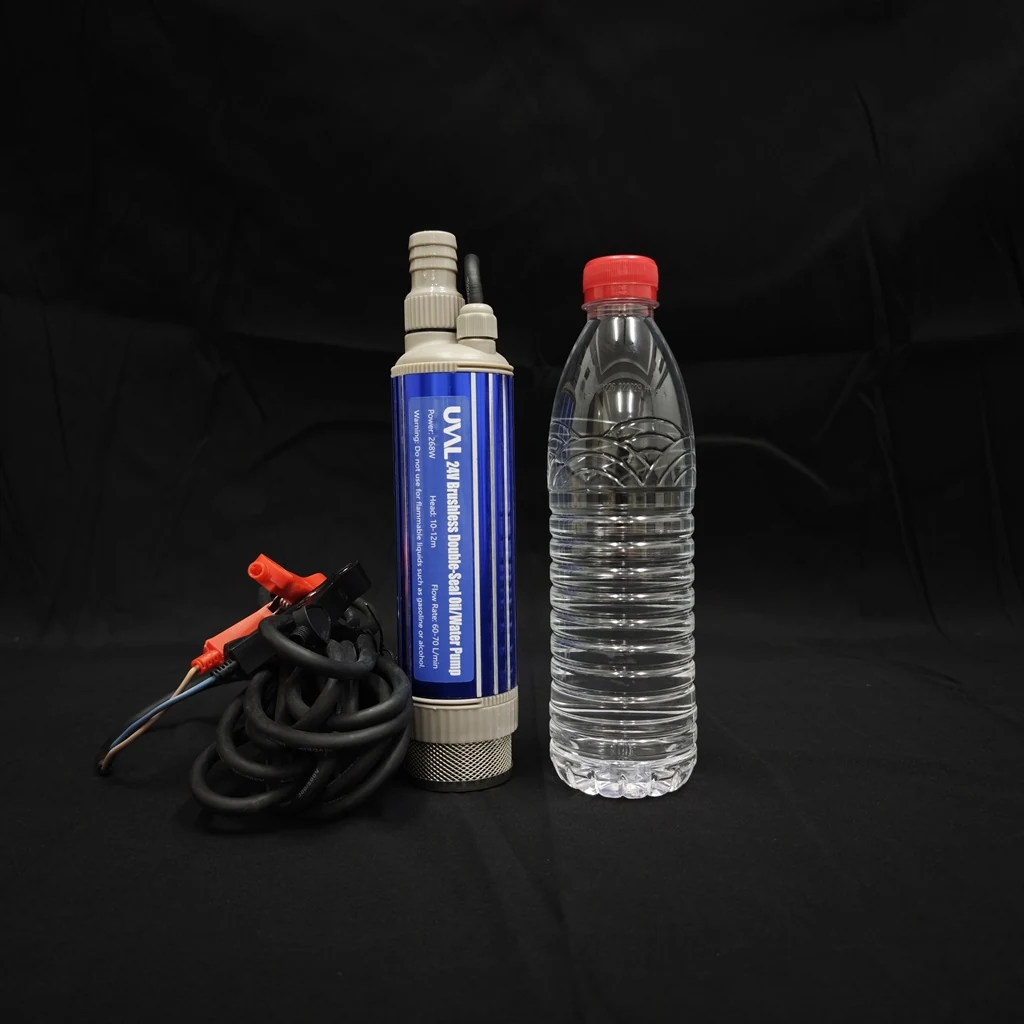

- Pump size
- 24 × 5.3 cm
- Body diameter
- 53 mm
- Outlet / adapter
- 1/2", 3/4", 1"
- Cable length
- 5 m
- Suitable liquids
- Diesel, kerosene, water and urea solution
- Packaging
- 24 × 14 × 7 cm per unit
- Weight
- 0.95 kg net; approximately 1 kg gross per unit
Package contents
Brushless pump body, battery-clip cable, three outlet adapters, sealing parts and filter screen.
OEM options
- Label
- Plastic-part color
- Tube/body style
- Cable length
Recorded operating data
Noise test: Measured total sound pressure level: approximately 52 dB at 1 m, with 30 dB ambient background. Estimated pump-only contribution after logarithmic background correction: approximately 52.0 dB.
Runtime: Approximately 40 min based on the recorded 24V 7Ah test configuration
Continuous use: Up to 3 h recommended
These values describe the stated test configuration and are not presented as third-party laboratory certification.
